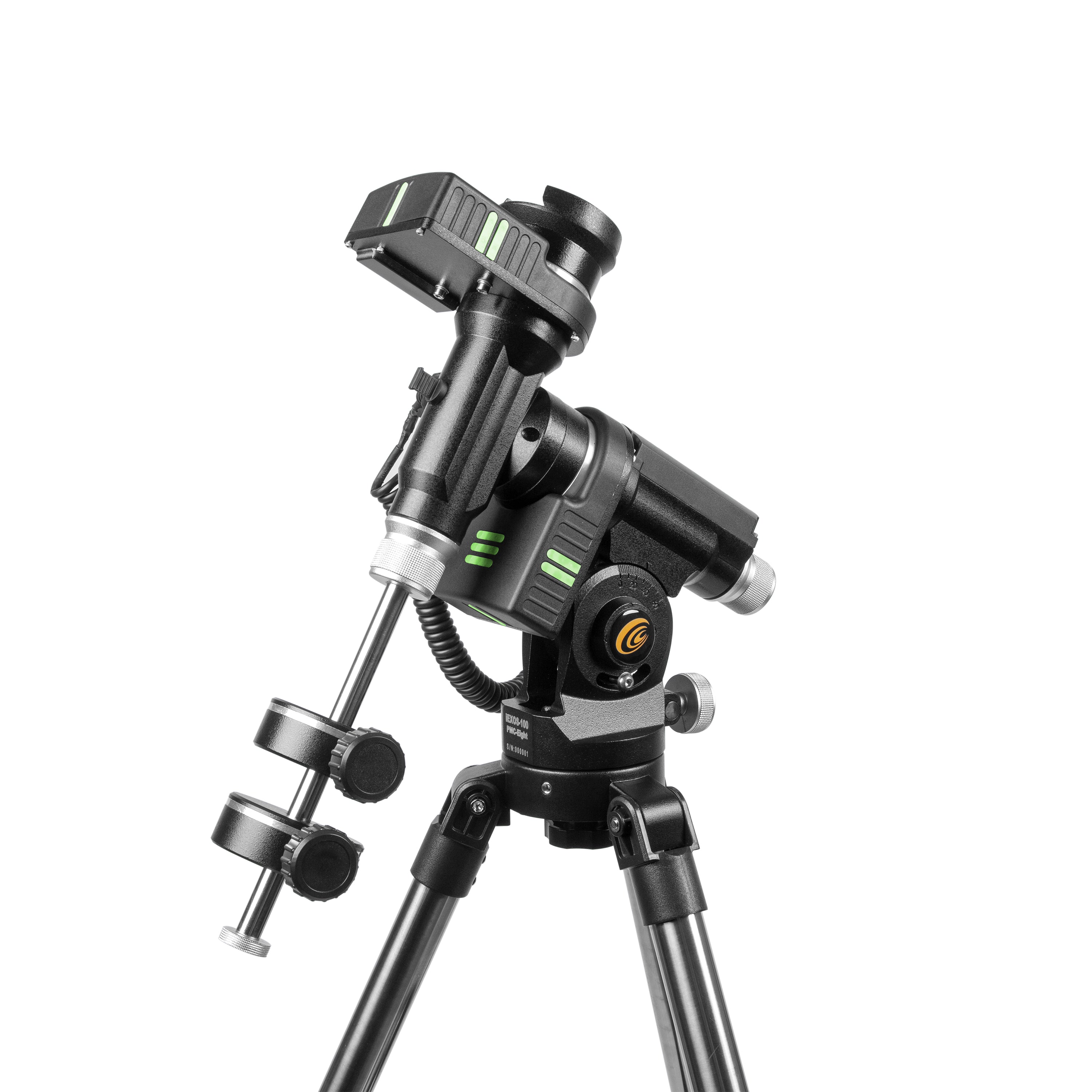

IEXOS-100-2 Sistema de rastreador ecuatorial PMC-Eight con WiFi y Bluetooth®
"Este es el último sistema portátil en lo que a mí respecta."
-Jim Johnston astrofotógrafo
Características

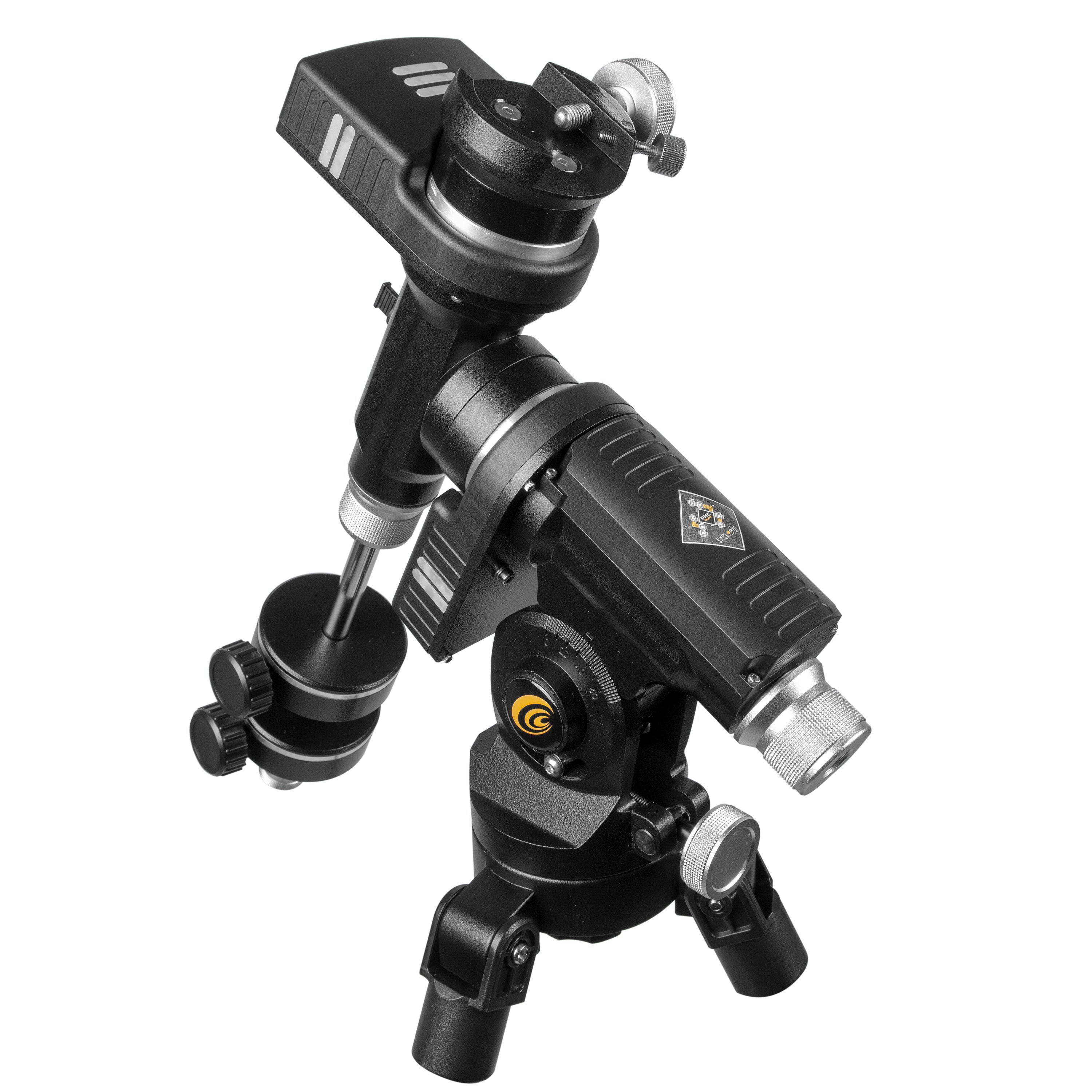

El IEXOS-100 es un sistema de goto astronómico que utiliza un diseño de montura ecuatorial alemán probado y explora el revolucionario sistema de control de movimiento de precisión PMC-Eight ™ de Científico para navegar sin problemas el cielo nocturno y rastrear los objetos a medida que viajan a través de él. Las características incluyen:
- Integrated Explore Scientific PMC-Eight ™ System que trasciende el procesador único estándar de la industria utilizando ocho CPU que funcionan independientemente entre sí para centrarse en las funciones definidas, lo que resulta en una capacidad de respuesta superior, eficiencia, confiabilidad e intervalos de tiempo asombrosamente rápidos.
- Engranajes de gusano de doble eje agarrados con unidades de cinturón de motor paso a paso de precisión tranquila
- La aplicación intuitiva Explorestars, que está disponible para tabletas Apple, Android y Windows, que facilita la operación del sistema GOTO. A través de él, los usuarios pueden alinear rápidamente su telescopio, navegar por las estrellas y aprender detalles sobre decenas de miles de objetos celestiales
- La AR y los ejes de declinación embarcados son suaves y permiten un equilibrio preciso que hace que el proceso de reposicionamiento de su telescopio sea eficiente
- Orificio de visión de alineación polar a través del eje RA y un control preciso de altitud para una alineación rápida sin alcance polar.

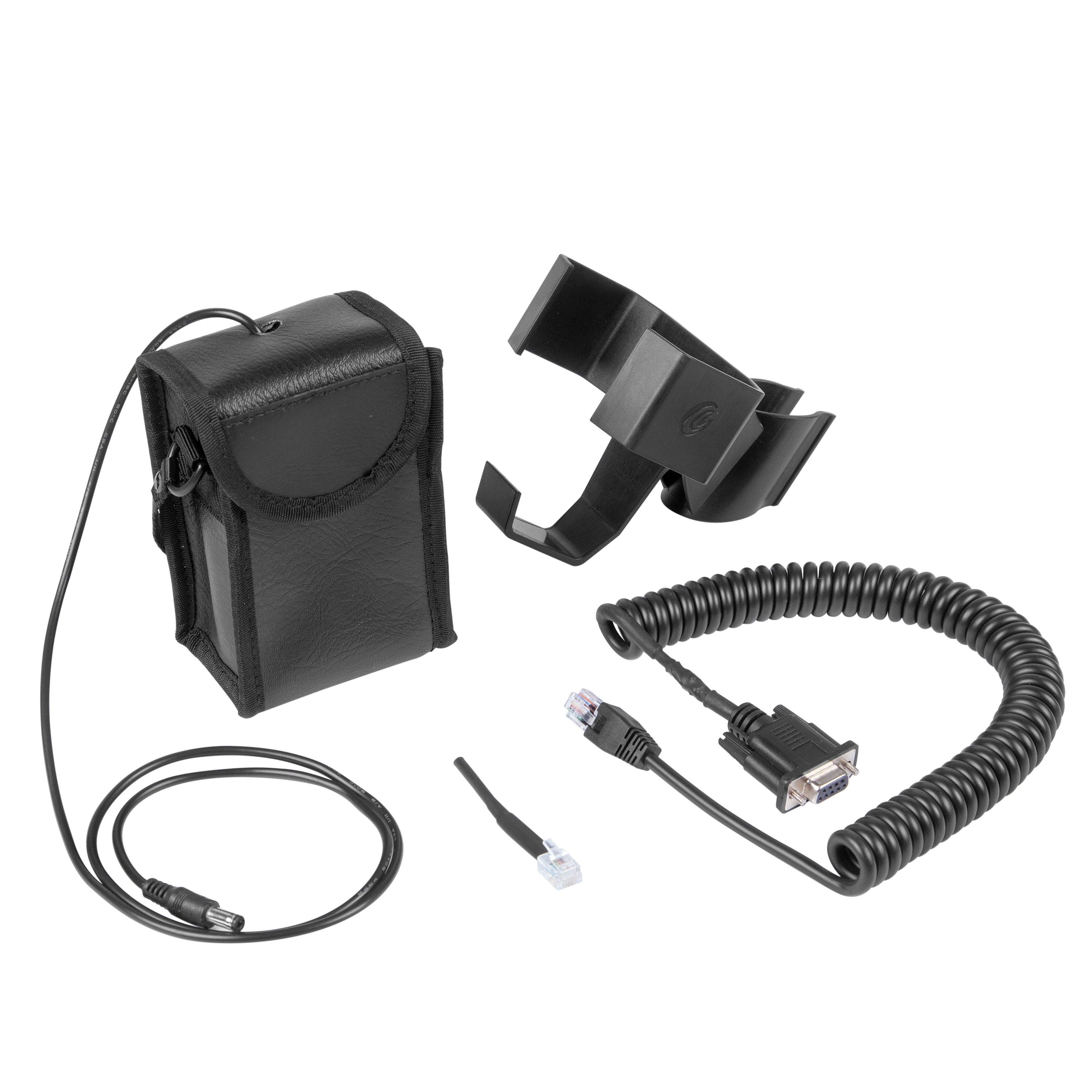

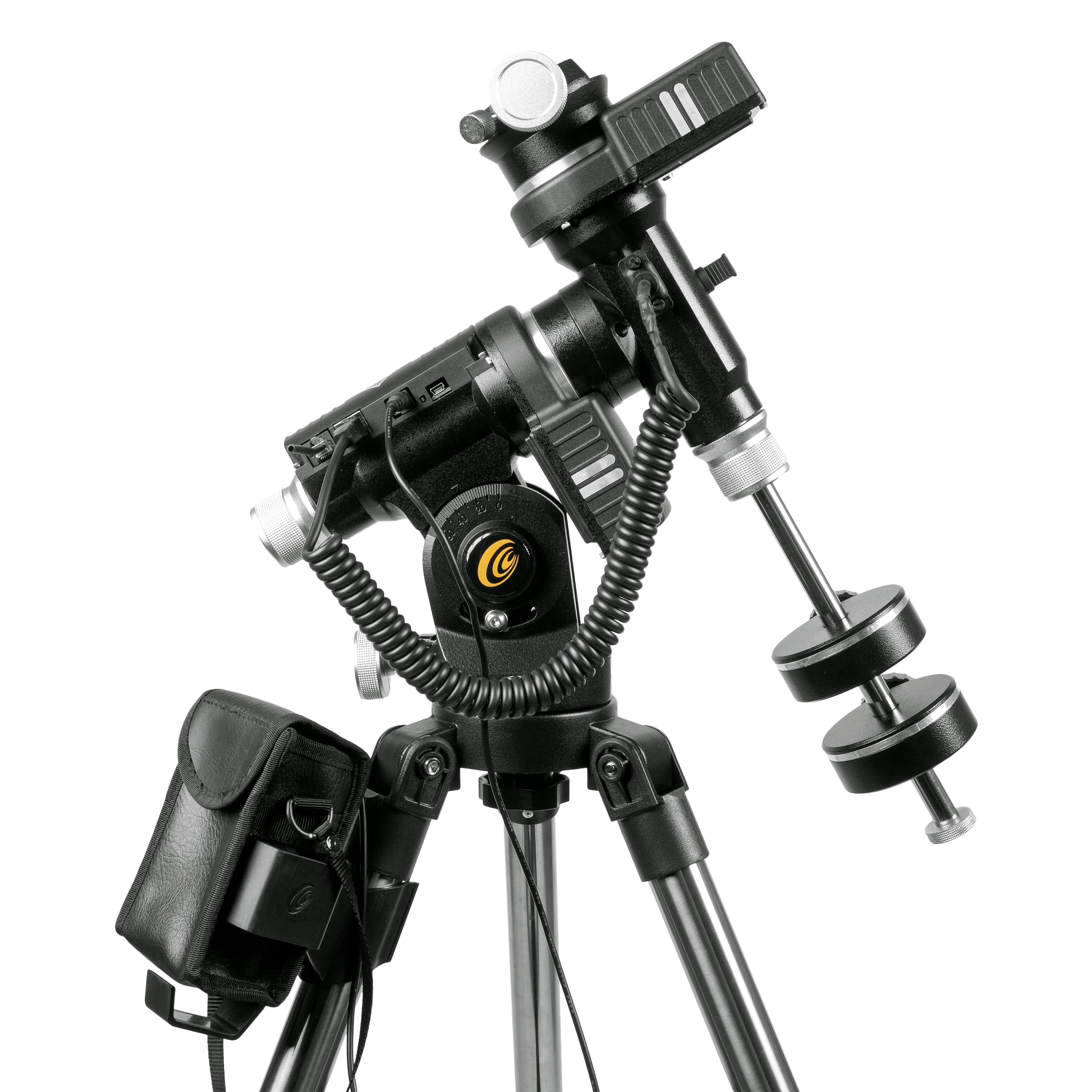

- Paquete de baterías que alimenta el sistema PMC-Eight ™ utiliza baterías de 8 C y se asegura en un soporte en una de las patas del trípode cuando está en uso

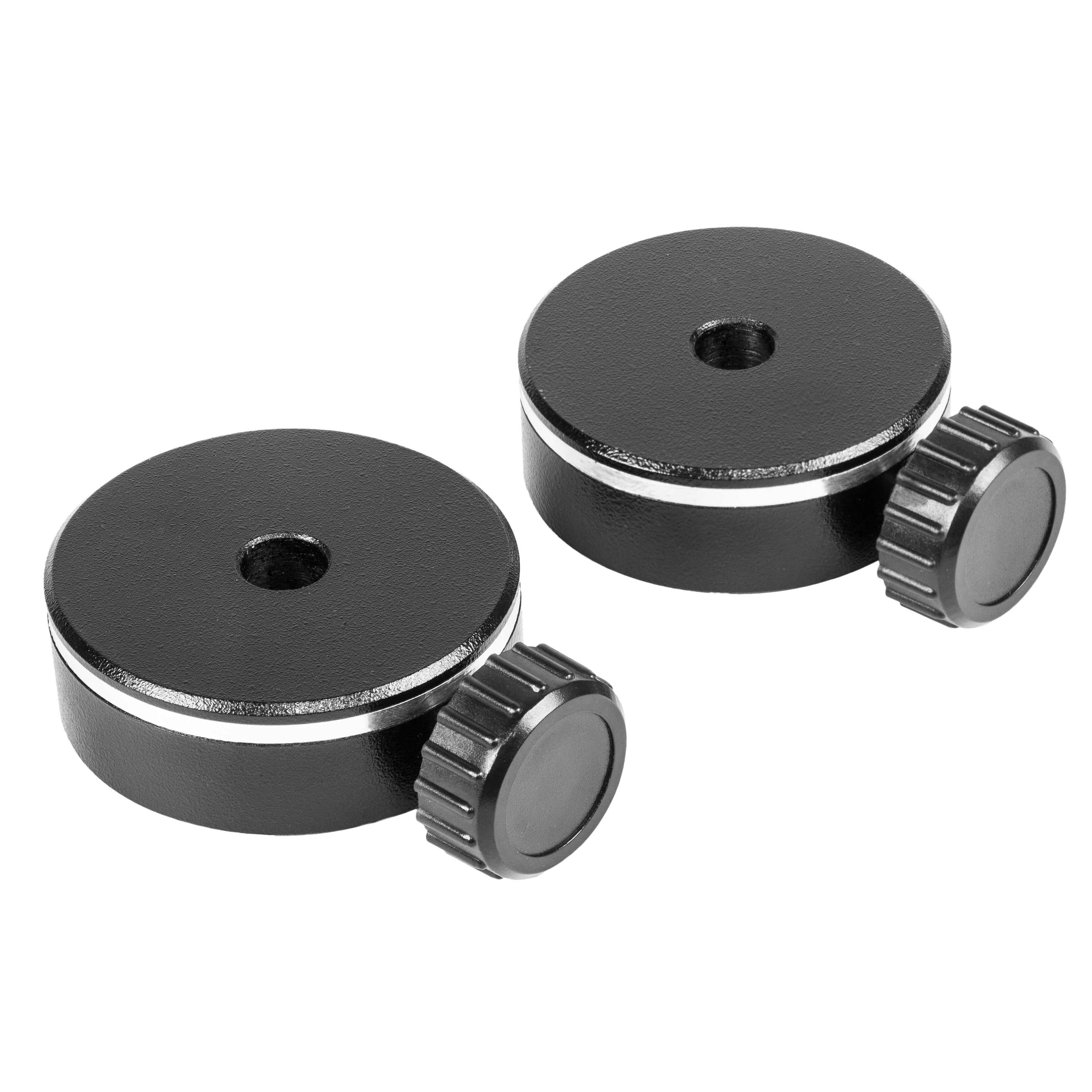

- Dos contrapesos de 1 kg incluidos
- Marcas de brillo en la oscuridad en el monte y el trípode
Descripción
El IEXOS-100 PMC-Eight™ El sistema de rastreadores ecuatoriales es unWiFi computarizado completo o rastreador ecuatorial de GOTO con cable con PMC-Eight integrado™ Electrónica adecuada para unir Pequeños telescopios o cámaras DSLR Adjunto al ensamblaje de la cámara DSLR científica Explore.
Use con la aplicación ExplorStars gratuita para tabletas (Windows, Android, Amazon y Apple), o con los estándares ASCOM gratuitos que cumplen con PMC-Eight™ ASCOM Driver y el cliente de ASCOM Poth de Explore Scientific (ya sea cableado o inalámbrico) para trabajar con prácticamente cualquier software Sky que admita ASCOM. La tableta o la computadora deben comprarse por separado.
El IEXOS-100 utiliza un diseño de montura ecuatorial alemán probado y explora el revolucionario sistema de control de movimiento de precisión PMC-Eight ™ de Científico para navegar sin problemas el cielo nocturno y rastrear objetos a medida que viajan a través de él. Esta combinación proporciona un rendimiento de observación y imagen superior sin un precio prohibitivo.
Los sistemas GOTO juegan un papel importante en el mundo de la astronomía aficionada porque garantizan que los usuarios pasen menos tiempo buscando objetos particulares y más tiempo observando e imágenes. El PMC-Eight™ Con sus conexiones versátiles compatibles con las aplicaciones gratuitas para las computadoras de Windows o las tabletas Android e iOS (las tabletas deben tener una pantalla de al menos 7 pulgadas), o a través de la descarga gratuita de ASCOM PMC-Eight™ El conductor y el cliente de Poth para conectarse a su software astronómico que cumple con ASCOM favorito puede permitirle controlar el telescopio a unos pocos metros de distancia o comunicando computadora a computadora con una conexión a Internet desde prácticamente en cualquier parte del mundo.
Una de las características destacadas del sistema IEXOS-100 es su diseño ecuatorial alemán. Cuando se trata de rastrear las estrellas con un telescopio, no hay nada que se compara con una montura ecuatorial alemana (GEM) porque seguirá con precisión a los objetos a medida que se elevan en el este y se pongan en el oeste. Para los observadores, una gema facilita el mantenimiento de su objetivo celestial en su ocular. Para las imágenes, te ayuda a evitar dificultades comunes de astrofotografía como la rotación de campo.
Antes de que pueda rastrear un objeto, debe encontrarlo, y ese objetivo puede ser desalentador cuando se enfrenta a una vasta extensión de cielo negro tinta o un cielo de la ciudad brillante. El IEXOS-100 pone un poderoso sistema GOTO en su arsenal de herramientas astronómicas que elimina la frustración de navegar por el cielo nocturno. Esta versión integrada del sistema PMC-Eight ™ de Explore Scientific trasciende el procesador único estándar de la industria utilizando un microcontrolador de 8 núcleos con ocho CPU que funcionan independientemente entre sí para centrarse en las funciones definidas. Esta delegación de tareas entre los procesadores da como resultado un sistema que ofrece una capacidad de respuesta superior, eficiencia, confiabilidad e intervalos de tiempo asombrosamente rápidos para la adquisición de imágenes suaves y un seguimiento preciso.
Aunque es internamente complejo, el sistema GOTO se puede operar fácilmente desde su propia tableta Apple, Android o Windows utilizando la aplicación ExplorStars, que tiene una naturaleza intuitiva que lo hace simple y rápido para alinear su telescopio, navegar por las estrellas y aprender detalles sobre Decenas de miles de objetos celestiales. Esta aplicación dinámica es alimentada por una base de datos que se actualiza rutinariamente para garantizar que siga siendo un recurso relevante.
Nuestro compromiso de crear una montura GOTO aerodinámica es obvio en otras opciones de diseño. El IEXOS-100 tiene embragues de bloqueo lisos que le permitirán reposicionar rápidamente su telescopio de un lado a otro y una perilla de altitud para ajustes de altura lisa. La base de montaje incluye un pequeño túnel de alineación polar que permite a los usuarios alinear aproximadamente su configuración de observación con Polaris. También tiene un simple nivel de burbuja que es útil cuando estabiliza su trípode. Otras características incluyen un soporte para mantener la batería, que alimenta el PMC-Eight™ sistema a través de 8 C baterías (no incluidas); dos contrapesos de 1 kg para equilibrar; y marcadores que brillan en la oscuridad en ciertos puntos del montaje y trípode para que pueda estar orientado con su configuración por la noche. El montaje está diseñado para contener hasta 19 libras (alcance, accesorios y contrapesos agregados).

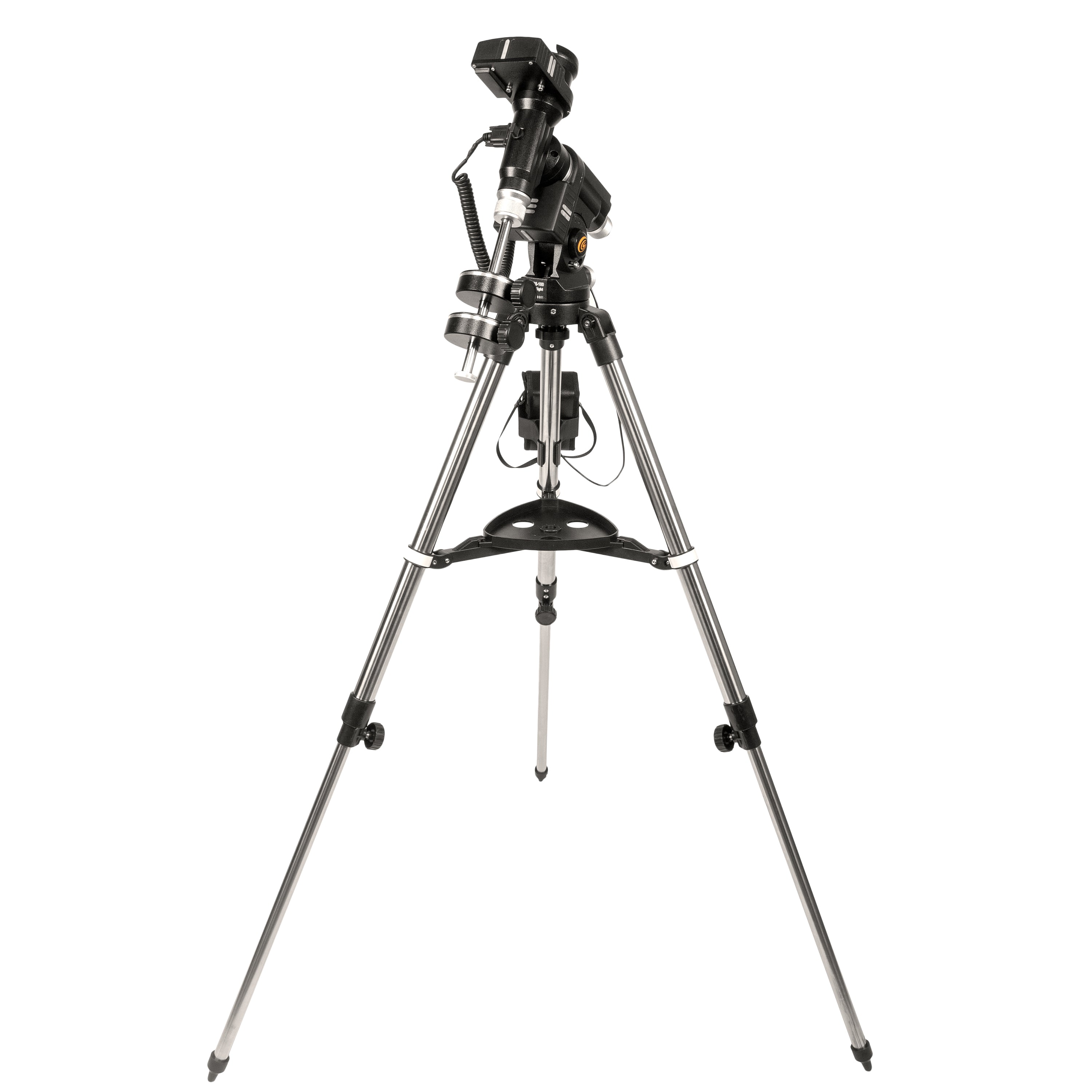

El montaje pesa 9.45 libras (4.29 kg), mientras que el peso ligeroTrípode de viaje y la bandeja de accesorios pesa 5.5 libras (2.5 kg). los Trípode de viaje, cuando se derrumbó, mide 27.25 pulgadas (69.21 cm) de altura.
Productos Recomendados:
- Explore el ensamblaje científico de la cámara DSLR Dovetail
- Adaptador de ajuste de acimut
- Trípode de campo de servicio mediano
- Trípode de campo de servicio pesado
- Banco de energía USB
Recursos:
- PMC-Eight, la visión y la tecnología
- Descargas de la aplicación Explorestars y ASCOM
- PMC-Eight KnowledgeBase
- La página de inicio de la comunidad de OpenGoto
- PMC-Eight y OpenGoto Community Groups.io Forum
Especificaciones
| Número de artículo | Es-eexos-100-02 |
| Monte la cabeza de peso | 9.45 libras |
| Peso del trípode | 5.35 libras |
| Trípode completamente colapsado, sin cabezal de montaje: | 25.5” |
| Trípode abierto, piernas retraídas, sin cabezal de montura: | 25” |
| Trípode abiertas y piernas retraídas con la cabeza del montaje: | 38.5 "en el punto más alto, 36" al centro del soporte de montaje |
| Trípode abierto, piernas completamente extendidas, sin cabezal de montaje: | 42” |
| Trípode abierto, piernas completamente extendidas con el cabezal de montaje: | 45 "en el punto más alto |
| Contrapesos: | 1 kg cada uno |
| Capacidad de peso de montaje: | Aprox. 9 libras (solo peso del equipo), 15 libras fotográficas (equipos y contrapesos); Aprox. Visual de 19 libras (equipo y contrapesos) |
Video
Garantía
La garantía limitada es un año, que se convierte en la garantía de exploración de estrellas cuando el producto se registra dentro de los 60 días posteriores a la compra. Haga clic aquí para registrarse.
Software
Software
Página de inicio de PMC-Eight Goto
Descargar el software Explorestars aquí
Encuentre insertos en sus preguntas de PMC-Eight en nuestro Base de conocimientos
Descargar el Manual de instrucciones
Residentes de CA: Propiedad 65 Advertencia (s)
Product Specifications
Additional Product Information
Recommended Products
Product Resources
Customers praised this affordable equatorial tracker for its robust build, precise tracking, and smooth operation. "Tracks very nicely" with minimal backlash. However, setup has a learning curve with outdated app info and software connectivity issues. Major complaint: azimuth adjuster sold separately. Great value at $299.
- So easy to set up and use, and tracks very nicely! I am very happy with it.
- A very capable mount given its very affordable price.
- Great product and great customer service. This makes me feel like a pro.
The iEXOS-100-2 PMC-Eight may not be considered by some to be an all around "premium" mount, but if you are looking for an inexpensive German Equatorial Mount as a starting point this one might be just what the Doctor ordered. I have three other mounts from different brands that are controlled by ASI Air Plus controllers and I use them for DSO astrophotography. The PCM Eight mount was chosen because I was building a dedicated Solar Imaging rig with a Lunt Solar systems LS50T Ha (Hydrogen Alpha) telescope. I didn't need a mount that could carry a massive payload, I wasn't going to need the typical accessories (EFW, EAF, Dew Heaters, etc.) and I really didn't want to spend a ton of money. My first test run with an ASI Air Mini was less then satisfactory so I switched to MeLee Quieter 3Q mini-PC running Windows 11 and ASCOM/NINA. Unfortunately this configuration didn't perform any better, so I wiped the mini-PC and installed Stellarmate OS. The difference was like night and day. Up until this point I was a die hard Air user and I have never really been keen on using anything that required desktop sharing, but for some strange reason neither of those systems seemed to like the PMC-Eight. There were disconnects, random tracking turn-offs, and difficulties with Park and Home functionality. The first time the PC booted into Stellarmate the mount connected on the first shot and it never skipped a beat. The Stellarmate UI is different from the Air and NINA UIs, but once you get a a handle on it everything falls into place.
An excellent experience with Explore Scientific and this product. Mr. Kent and the entire Explore Scientific team proved to be professional and reliable. This equatorial mount is excellent considering its price. I am very satisfied with the product and the after-sales service I received.
I thank Mr. Kent and all the Explore Scientific staff who have solved all the problems encountered with seriousness and professionalism.
Also the product is excellent for a number of reasons that would be too long to write here.
Absolutely satisfied with the product and professionalism of Explore Scientific.
Poor product. Not able to set it up to function properly. was returned.
changing the initial review as everything I thought about the mount when I got to when I got to use it. It was determined to have a faulty RA motor. I have been back and forth with support for a week but all I get from them is "We checked it out here" and "It must be the pully on the motor".. I ended up buying a replacement motor so I can use the mount mount I purchased. Not a great first experience from explore scientific, Could have just sent a replacement and I will change this review slightly if they do ever end up sending another motor...
I've only had limited opportunities to use it so far (too many cloudy nights) but the small amount I have been able to use it is seems a very capable mount given its very affordable price.
The iexos is great so far. Obivously when you buy a new piece of equipment its gonna be cloudy for the whole week but I’ve managed to get it outside once or twice. It came very quick and well packaged. It was super easy to set up everything worked as it should right out of the box. I did run into a slight problem after installing the drivers from the explore scientific website though. After you install them and open NINA it might be set to the wrong mount. It’s a very easy fix though, just select the gear button when connecting and make sure the drop down is set to iexos not anything else, just took me a second to figure out why my stars had trails. the only other complaint is that it doesn’t come with an azimuth adjuster. This isnt too big a problem because you can loosen the screw on the bottom of the tripod and turn the mount by hand. With three point polar alignment I got it down to below an arc minute without the az adjuster. 10/10 though and its cheaper than a tracker.
Tres bien comme monture ,aliage robuste ,tres precis lors de suivi ,la seul difficulte est qu elle est diffice a brancher et faut jongler un peu pour demarrer l application explorestars .ca devrais avec le temps s ameliorer avec ce niveau la bon succes ,tres abordable et performante a ce prix
This mount seems to be just the thing for a small refractor. I would have given it five stars if ES had included the azimuth adjuster as part of the mount. What on earth were you thinking, making it a separately purchased add-on?!
The iExos 100 PMC-Eight is so easy to set up and use, and tracks very nicely! I am very happy with it.
This appears to be a nice small go to mount for a small ota or a camera. I bought this for a Conan camera and small 5 in sct.
I installed the explore stars app on windows 11 laptop and iPad. I was able to find the scope in the WiFi connection on both and perform simple mount movements. It was making some noise as if the gears were hanging.
Download and installed explore scientific PMC-Eight configuration manager and connected with the mount using usb cable. I updated to the lasted firmware which appear to go okay. I lost connection with the mount (I do not no why). But I have not been able to connect with it over WiFi. The mount does not show up in the WiFi connections list at all anymore. It appears that I can connect with the mount via usb and configuration manager. However, the mount never responds.
I also noticed when mount is powered up the red led comes on and then the green led comes on (briefly) the goes off. Then just t red led is on. The green led no long blinks as it original did prior to using the configuration manager software.
Not sure what I may have done incorrectly. But currently nothing with the mount is working.
Update: I submitted an issue with Explore Scientific. They were quick to respond. Initially I did not think was going to get the mount connected again. But the mount is back up and running.
The mount functioned perfectly for a first time user of a mount of any kind. Should come with a polar scope, and azimuth adjuster of sorts.
Getting all of the necessary software installed and working was a little difficult.But once I figured it out, it all worked perfectly! So far, I am very impressed with this mount!
Great product and great customer service from explore scientific. Im a beginner but this makes me feel like a pro, there is a little bit of a learning curve. However its a very small learning curve with their own software. I would highly recommend this product.
Still learning about it...it's making a huge difference in my astronomy and astrophotography experience.
The PMC tripod is great. I’m still learning about it since I have you here. I did order the power supply almost 3 weeks ago and still haven’t had it delivered. I hope it shows up shortly cause I know you have good reputation. That’s why I order from you guys thank you!Pete
Really loving the EQ GOTO mount. After getting it to work with ASCOM and polar aligning it works spot on. I am still waiting for a second one from Amazon and I ordered the AZ adjuster and polar scope for it. Wish I would have ordered directly from ES.
Took me a bit to figure out because most of the app info online is outdated. Once i did . I'm getting excited for some clear sky's
I am very impressed with the mechanical design and execution. They are done professionally and taking the stop off they move quietly, effortlessly and smoothly. Couldn't ask for more. Your documentation, especially for a MAC, is severally missing. After 2 weeks I have finally found out what sequence I need to do in order to get the mount to be found by either the ASCOM driver on a windows machine or INDI on my MAC. I have been totally unable to connect the drive to the WIFI through either ASCOM or INDI. The ExploreStars program on either the MAC or Windows connects to the mount through the WIFI with the mount being driven with the serial port. The biggest issue on the MAC is configuring the INDI driver. I have found no way to do that unless the higher level K-Stars or Cartes Du Ciel brings it up. I couldn't get PHD2 to connect to the INDI driver so my only solution for guiding was K-Stars but then an old V1 ASIAIR come up for $60 so I bought it to be my guide control and have given up controlling my mount with my MAC. For solar system photography it will run the capture from the camera for now.
I still believe at 299 it was a good value even considering the limitations. Buy that is only because I ended up getting a really good deal on the ASIAIR.
You sort of have some documentation about installing and running the ASCOM support but you have forgotten about the MAC. After days of trying different scenarios did I break the code that runs INDI to figure out how all the pieces play together. Had a document that showed the sequence been available it would have been SOOOOOO much easier. Just a note that I am a retired electrical engineer having worked with computers. Software is not new to me nor hardware. I have run linux systems as well as the windows and now MAC. I cannot imagine somebody trying this that has no breadthto rely on gettting this figured out.
And the one last one, there was not even a piece of paper inside the box that pointed you anywhere to get going.
David
